Stadia Roof Mounted Basketball

Internationally certified roof mounted systems available in a number of configurations, custom made to suit almost any facility.

Stadia Roof Mounted Basketball

Internationally certified Stadia Roof Mounted Basketball Systems are available in a number of configurations, custom-made to suit almost any facility.

Stadia Roof Mounted Basketball Systems can be designed to fold forwards, backwards or sideways as required. They have been engineered to provide maximum strength and stability in all situations, while remaining sleek and elegant with the unique triangulated design.

The Stadia range features as standard inclusions, armour glass backboard, backboard pads, Positive Lock Goal (with option for 180 degree goal) and key-operated safety winch for ease of operation.

Systems are available in a range of powder-coated colours as required and are manufactured by FIBA partner Gared Sports. Conforms to VSBA specifications.

Safe and durable solid double rings, with pigtail-less net attachments

FIBA certified, and conforms to EN1270 regulations

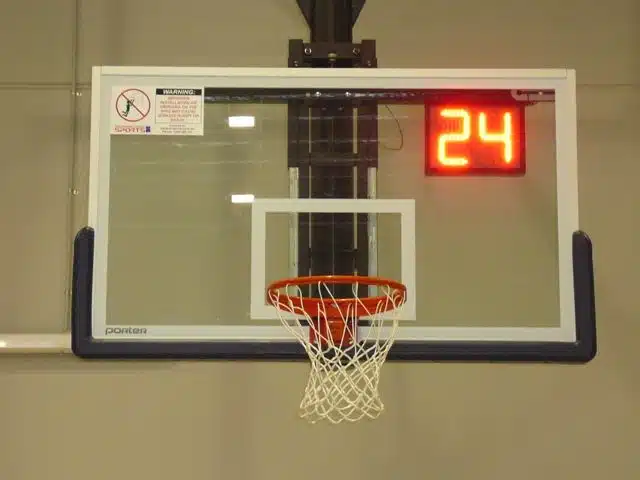

Armour glass backboard

Cyclic load testing (fatigue testing) reaches 100,000 cycles from zero imposed action to the prototype cyclic test load

Test load is 1.2kN, applied downward at the face of the backboard
Permanent deformation is under 10mm, without cracks
Certified by a registered professional engineer, with procedure and results detailed

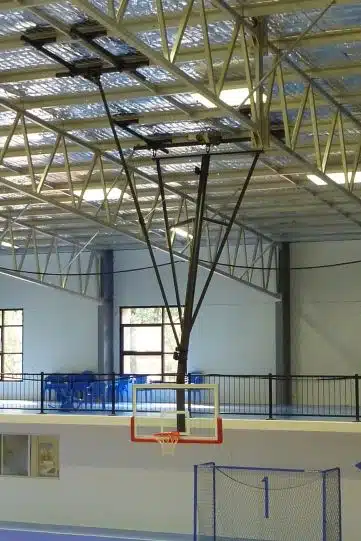

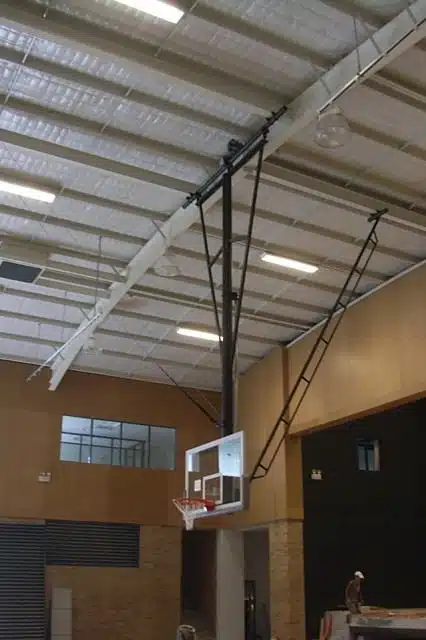

Roof mounted off steel beams or option cradle systems

Electrically powered and remotely key operated

Optional height-adjustable backboard with option for powered operation

Mechanically braced—to reduce backboard movement

Positive locking rings (not fixed or un-controlled spring loaded)

Net attachment through tubes (not hooks)

Safety strap option for optimum operational safety

For detailed regulatory information, drop us a message.
