Stadia Wall Mounted Basketball

A FIBA Certifed international level Basketball system for top level competition use, that conforms to VSBA specifications.

Stadia Wall Mounted Basketball

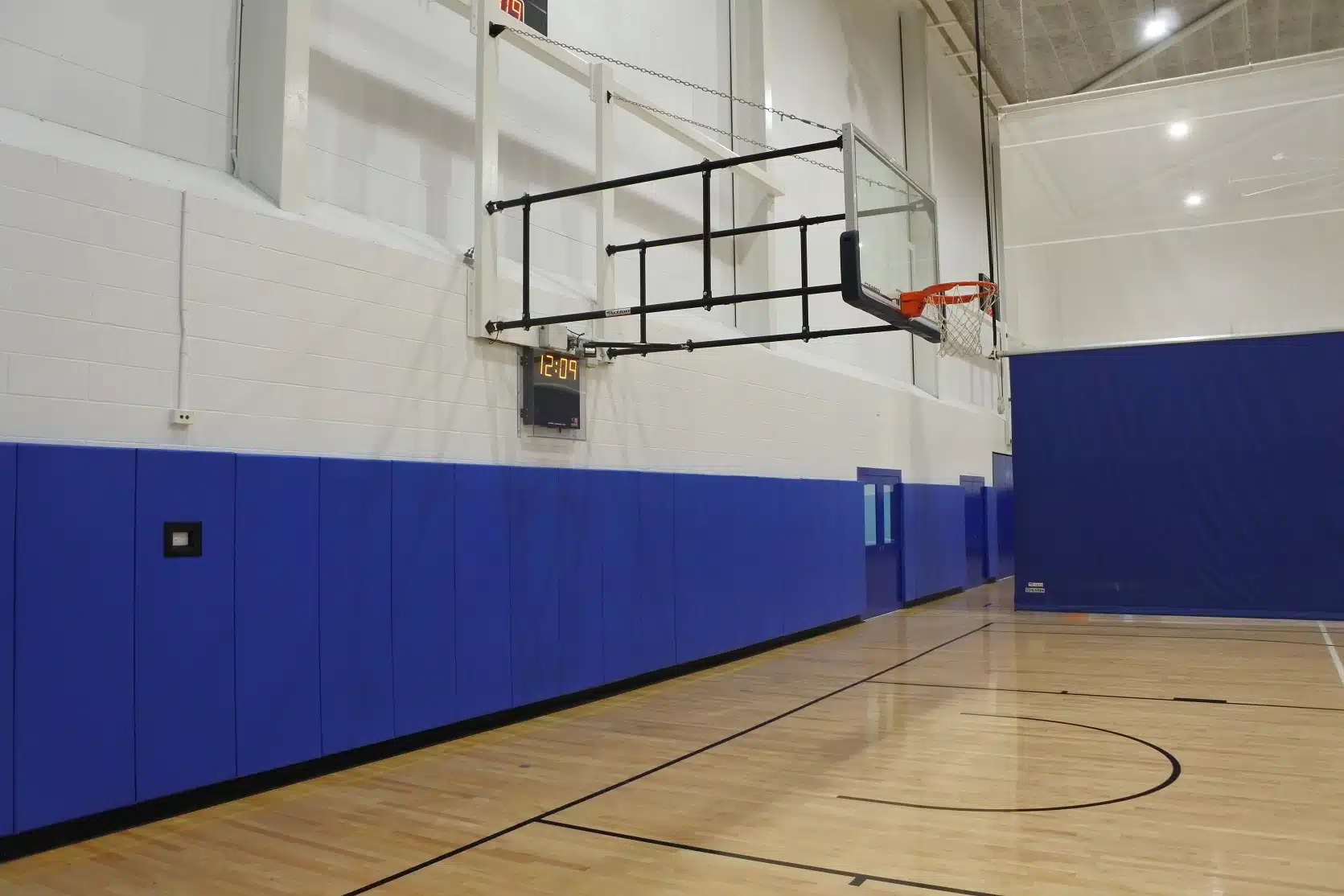

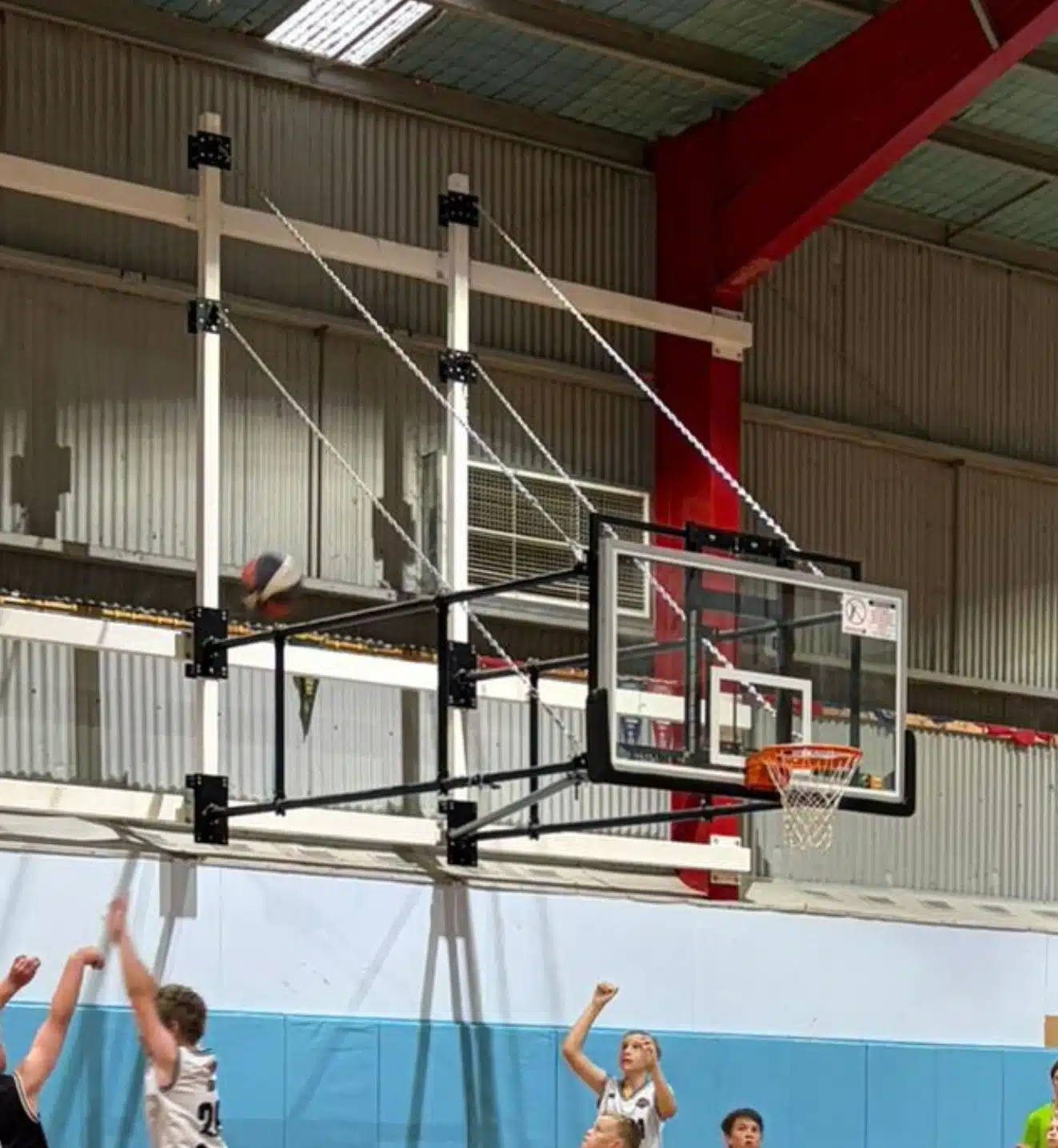

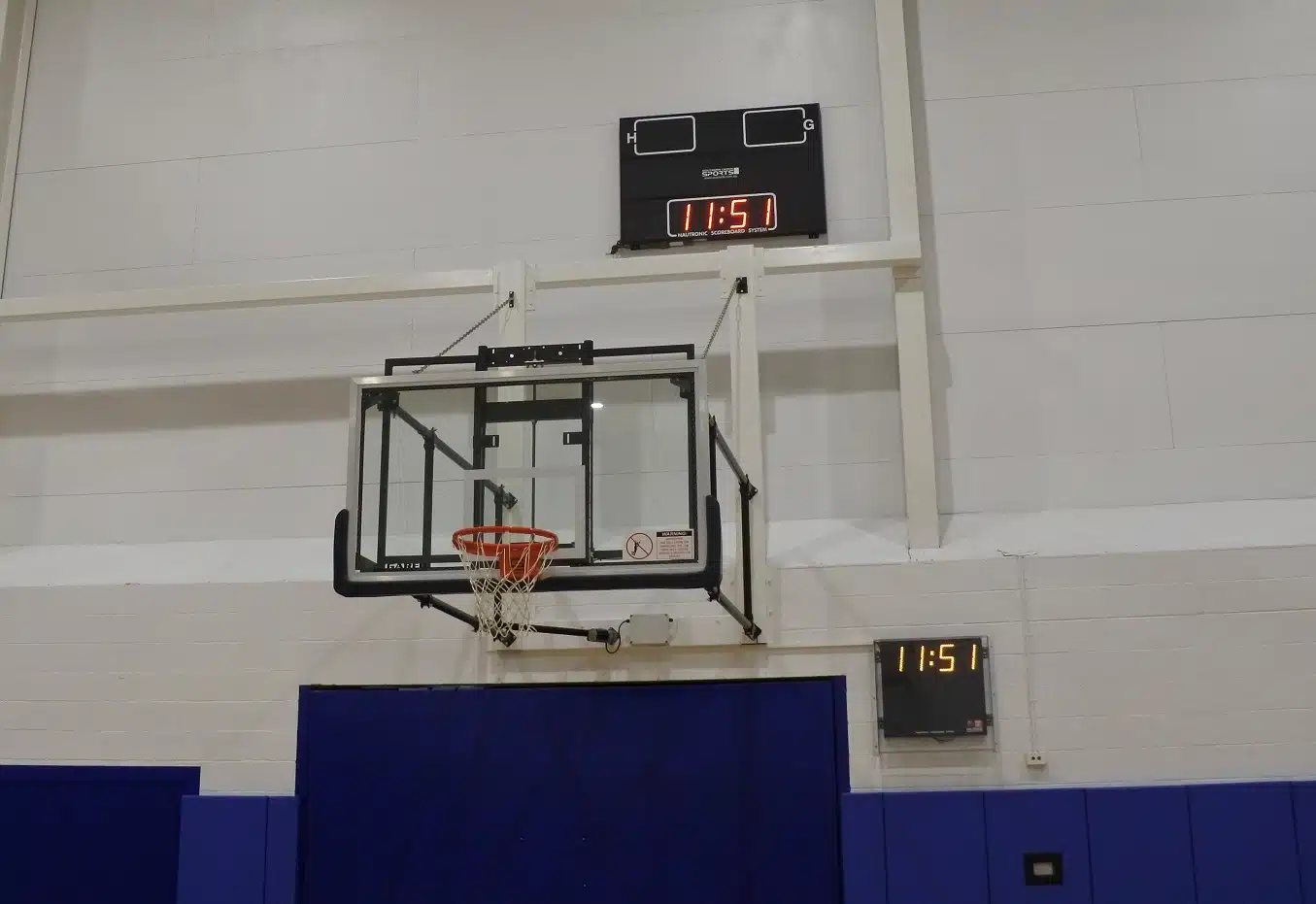

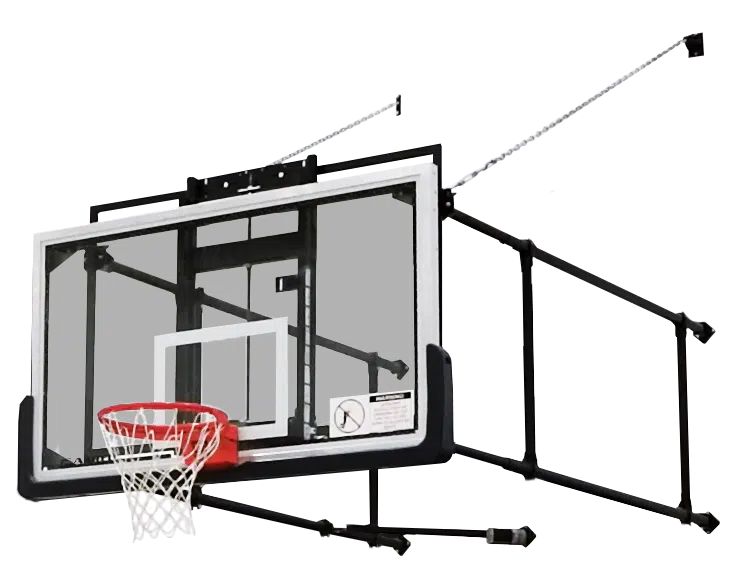

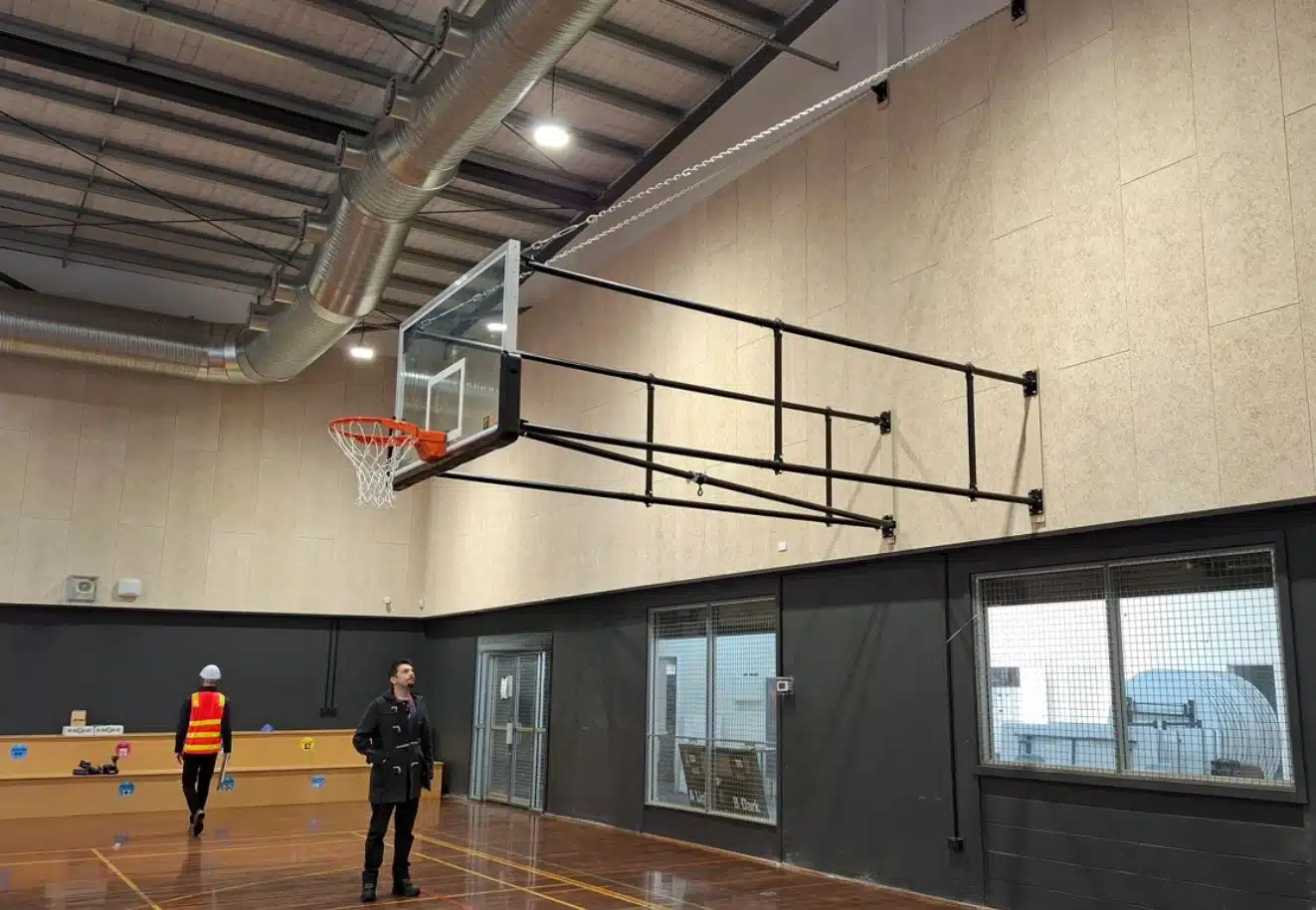

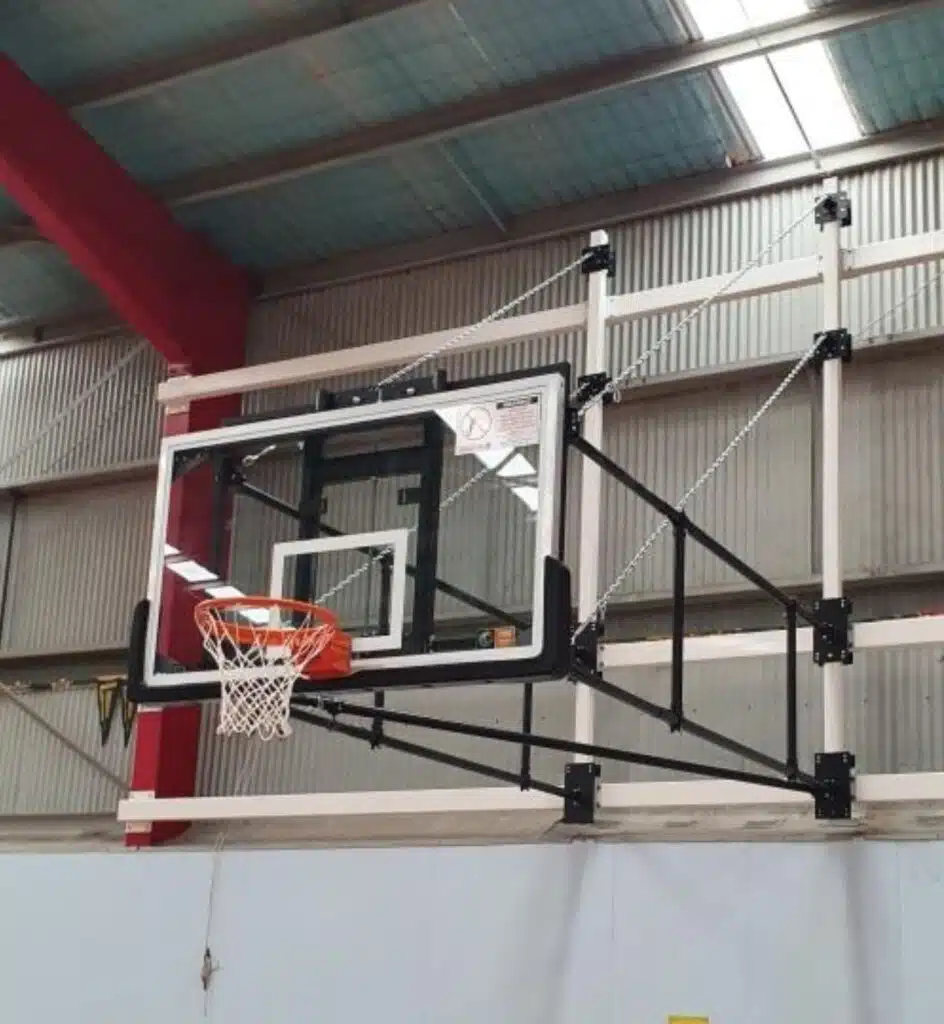

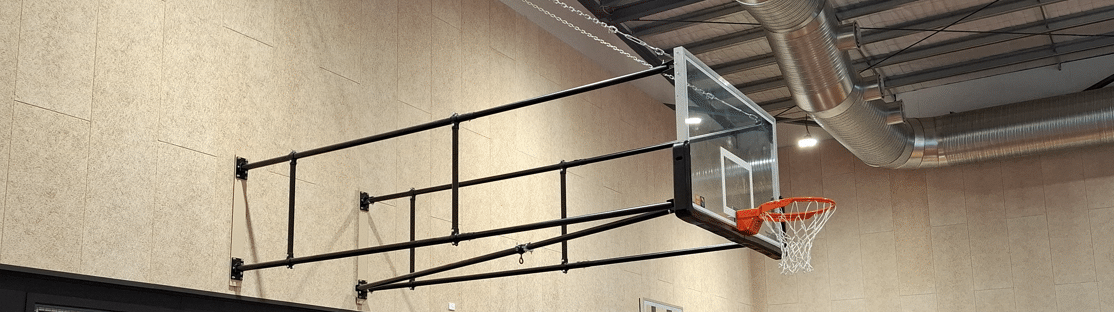

Stadia Wall Mounted Basketball System is a FIBA-certified international-level Basketball system for top-level competition use, that conforms to VSBA specifications.

The most popular FIBA-certified competition side-folding wall mount Basketball system in the Pacific, this system features a glass backboard with a Positive Lock spring-loaded goal and black backboard padding as standard.

The standard system utilises 6 connection points to the wall (increasing to 8 connection points for the longer projection BBSTW-XL system) to increase stability and minimise backboard reverberation. The arms are also all connected via steel braces to ensure they are strong and integrated at all times.

Available in 3 configurations, strengthened as the projection increases for maximum stability.

BBSTW FIBA certified system to 3.66 m
BBSTW-XL FIBA certified system from 3.67-4.27 m
BBSTW-XLS FIBA certified system from 4.28 – 4.88 m

The systems are from Gared Sports and can also be fitted with height adjustment.

FIBA certified, and conforms to EN1270 regulations

Armour glass backboard

Cyclic load testing (fatigue testing) reaches 100,000 cycles from zero imposed action to the prototype cyclic test load

Test load is 1.2kN, applied downward at the face of the backboard
Permanent deformation is under 10mm, without cracks
Certified by a registered professional engineer, with procedure and results detailed

Wall mounted systems fold sideways, and roof mounted systems are versatile

Electrically powered and remotely key operated

Electrically height adjustable backboard

Mechanically braced—and wall mounted system protrusion under 3.5m—as per FIBA rule 14.2

Positive locking rings (not fixed or un-controlled spring loaded)

Net attachment through tubes (not hooks)

For detailed regulatory information, drop us a message.
